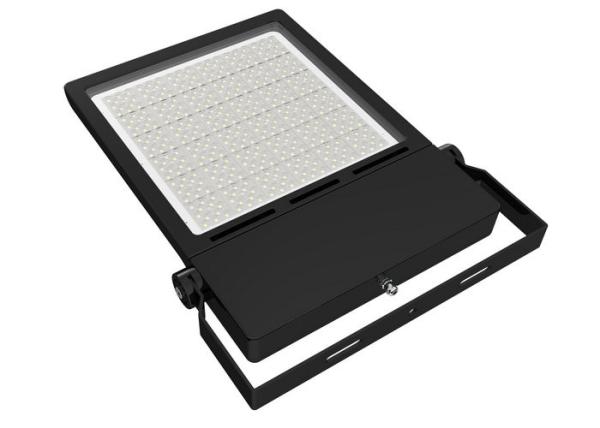

* Adopting high brightness SMD3030 LUMILEDS or CREE LEDs light source;
* High output lighting efficiency 140LPW upmost;
* Cold forging high thermal conductivity 1070 aluminum optimal,
* Good mechanical strength and heat dissipation;
* High anti-corrosion grade WF2, can be used indoor and outdoor prevent corrosion environment;
* High quality Meanwell/Sosen power supply;
| Warranty | 5 Years | IP Rating | IP66 |
| Op. Temp. | -40°C to + 50°C(-40°F to 122°F) | Driver | Meanwell ELG/HLG,Sosen |
| CCT/K | 3000K/4000K/5000K/5700K/6500K | Efficiency | 150Lm/W (± 5%) |
| Installation(Optional) | Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting | Controls and Dimming | 1-10V, DALI, PWM,Zigbee Wireless Dimming |
| Power | 150W | Luminous Flux | 112,500Lm (±5%) |
| Beam Angle(Optional) | 10°/25°/45°/60°/90°/130*30° polarized light 60° | LED Chips | LUXEON SMD3030 LEDs |
| CRI | >70Ra (>80Ra for Option) | Lifespan | >50,000 Hours |
After-Sales Service
a. 3 to 5 years quality warranty with lifelong maintenance.
b. Free guarantee repair (including labor and material): free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
c. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.
d. Spare parts: necessary spare parts are provided together with products to customers.
e. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
f. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
Options:
> Driver: Sosen,Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV;
> Microwave Motion Sensor;
> Airports & Harbors
> Billboard illumination
> Large recreational sports facilities
> Industrial areas & Landscape buildings
> Roundabouts and motorway junctions
| Model No. | DR-FL050-CGXX | DR-FL100-CGXX | DR-FL150-CGXX | DR-FL200-CGXX | DR-FL300-CGXX |
| System Watts/W | 50W | 100W | 150W | 200W | 300W |
| System Efficiency/LPW | 120~125LPW |
| Lumen Output/lm | 6.500±5% | 12.500±5% | 18.750±5% | 25.000±5% | 37.500±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) |
| LEDs Light Source | SMD3030 |
| SDCM | <5 |
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra | >70Ra (>80Ra for Option) |
| Power Factor | >0.95 |
| THD | <10% |
| Beam Angle(Optional) | Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional |
| UGR | <25 |
| Surge Protection | 6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional |
| LED Driver | Sosen,Meanwell ELG / HLG Optional |
| IP Rating | IP65 |
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee for Option |
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection |
| Sensor (Optional) | Motion Sensor |
| Protection Class | ClassⅠ |
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional |
| Material | Aluminum+Toughened Glass |
| Lifespan/hrs | 62.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) |
| Switching Cycles | 100,000 Times |
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
| Character/Power | 100W | 150W | 200W | 240W | 300W | |
| A / mm | 389 | 389 | 437 | 493 | 582 |
| B / mm | 297 | 297 | 346 | 379 | 444 |
| C / mm | 57 | 57 | 57 | 57 | 60 |
| Model No. | Net Weight/Kg | Outer Carton Size/mm | Gross Weight/Kg | QTY”/CTN |
| DR-FL050-CGXX | 3.6 | 355*350*165 | 4.5 | 1PCS/CTN |
| DR-FL100-CGXX | 3.8 | 355*350*165 | 4.7 | 1PCS/CTN |
| DR-FL150-CGXX | 4.5 | 415*410*175 | 5.8 | 1PCS/CTN |
| DR-FL200-CGXX | 5.7 | 475*470*195 | 7.3 | 1PCS/CTN |
| DR-FL300-CGXX | 9.3 | 475*470*195 | 11.5 | 1PCS/CTN |
FAQ
Q1:What is a flood light?
RE:LED floodlights are lamps that specify that the illuminance on the illuminated surface is higher than the surrounding environment. Also called the spotlight. Normally, it can aim in any direction and has a structure that is not affected by weather conditions. It is mainly used for large-scale operation sites, general constructions, stadiums, overpasses, memorial monuments, parks and flower beds.
Floodlight (Floodlight), a floodlight is a point light source that can illuminate equally in all directions. Its illumination range can be adjusted arbitrarily, and it appears as a regular octahedron icon in the scene. Floodlights are the most common light source used in the production of function pictures. Standard floodlights are used to illuminate the entire scene.
Q2: What are the advantages of flood light?
RE:Advantages of LED flood light;
①High-purity aluminum reflector, the most accurate beam and the best reflection effect.
②Symmetrical narrow-angle, wide-angle and asymmetric light distribution systems.
③It is troublesome to change the light bulb with the open type behind.
④The lamps are equipped with a scale board to adjust the projection angle.
⑤It is suitable for lighting in large places and buildings.
