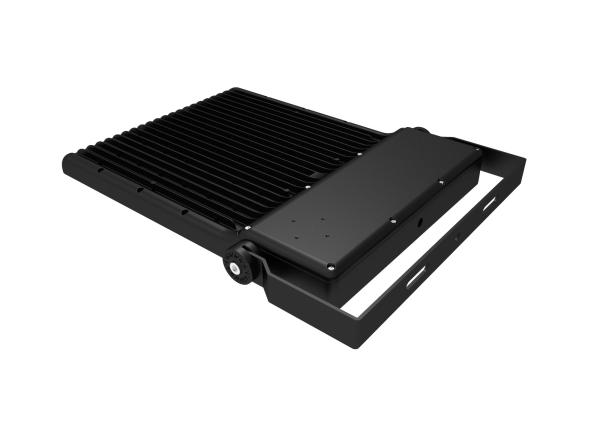

100W SMD Light for Multiple Industry Illumination Application

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

100W SMD Light for Multiple Industry Illumination Application

Name: 100W SMD Light for Multiple Industry Illumination Application
Brand: DUALRAYS
Price: 1 USD

China 100W SMD Light for Multiple Industry Illumination Application wholesale

Brand Name : DUALRAYS

Model Number : DR-FL100-CG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2pcs

Price : Please inquiry for laterst price

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

CCT : 3000K~6500K

CRI : >80

Efficiency : 140lm/w

LIfe span : >50000h

L90 : >36000hrs

Sensor : Available

Contact Now

100W SMD Light for Multiple Industry Illumination Application

500W Traditional Metal Halid Lamp Equivalent LED Flood Light 200W

> 200W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

100W SMD Light for Multiple Industry Illumination Application

Model No.	DR-FL050-CGX	DR-FL100-CGX	DR-FL150-CGX	DR-FL200-CGX	DR-FL300-CGX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	6.800±5%	13.500±5%	20.000±5%	27.000±5%	33.200±5%
Efficiency/ lm/w	135LM/W
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	3000K/4000K/5000K/5700K/6500K
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30° / 60° / 90° / 120°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver	Sosen, Meanwell ELG/ HLG
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Emergency(Optional)	Available
Protection Class	ClassⅠ
Material	Aluminum+PC
Lifespan/hrs	>62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Ceiling Mounting, Wall Mounting, Ground Mounting
Certificate	CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

100W SMD Light for Multiple Industry Illumination Application

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355350165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355350165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415410175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475470195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475470195	11.5	1PCS/CTN

100W SMD Light for Multiple Industry Illumination Application

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
100W SMD Light for Multiple Industry Illumination Application 　

100W SMD Light for Multiple Industry Illumination Application

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
100W SMD Light for Multiple Industry Illumination Application

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
