IP66 Outdoor LED Street lights Photocell Controller Available

Name: IP66 Outdoor LED Street lights Photocell Controller Available
Brand: DUALRAYS
Price: 1 USD

China IP66 Outdoor LED Street lights Photocell Controller Available wholesale

Brand Name : DUALRAYS

Model Number : DR-FL090-DG2

Certification : CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available

Place of Origin : Shenzhen,China

MOQ : 2pcs

Price : negotiable

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS/Month

Input : AC100-277V

IP Grade : IP66

Bracket : Yes

Driver : Meanwell

CRI : >80Ra

Flicker : Flicker free

Contact Now

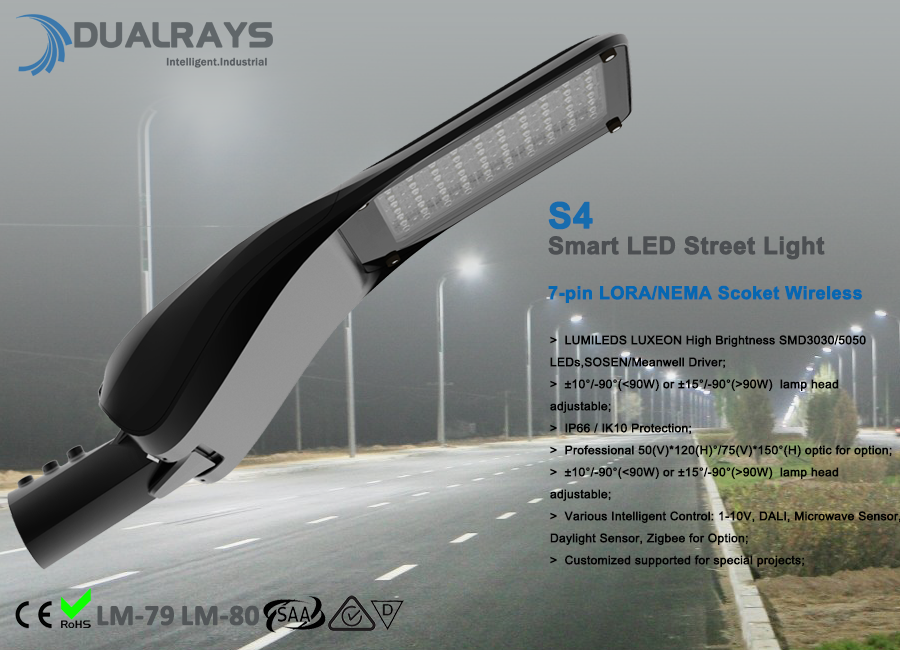

IP66 Outdoor LED Street lights Photocell Controller Available

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

* Roadways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Model No.	DR-ST090-DG2
Rated Power/W	90
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
AC Input Volage/V	AC100~277V 50/60Hz
UGR	<25
THD	<10%
Installation Diameter	ø60,or adaptor
Surge Protection	6KV~10KV Buit in Driver/10KA 20KV/20KA 20KV
Operation Temperature	-40 ~ +55℃
Certificate	CE ROHS D-MARK SAA

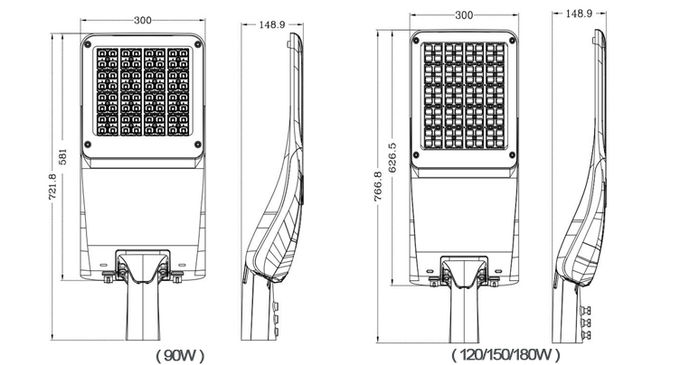

30W/60W Version

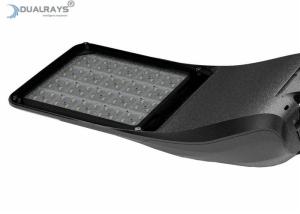

IP66 Outdoor LED Street lights Photocell Controller Available

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Outdoor LED Street lights Photocell Controller Available

DALI Device
IP66 Outdoor LED Street lights Photocell Controller Available

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
IP66 Outdoor LED Street lights Photocell Controller Available

IP66 Outdoor LED Street lights Photocell Controller Available

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
IP66 Outdoor LED Street lights Photocell Controller Available

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
IP66 Outdoor LED Street lights Photocell Controller Available

(Partnership)
