40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

Product Categories

DUALRAYS LIGHTING Co.,LTD.

Contact Now

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

Name: 40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse
Brand: Dualrays
Price: 1 USD

China 40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse wholesale

Brand Name : Dualrays

Model Number : DR-TRL-EG5XPM

Certification : CE, Rohs,TUV

Place of Origin : Shenzhen,China

MOQ : 2PCS

Price : Negotiable

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100000PCS/Month

Delivery Time : 5-15 Bussiness Day

Packaging Details : Netural Package/OEM and ODM Package Available

Rated Power : 50W

System Efficiency : 160LPW

Luminous Flux : 8000±5%

IP Rating : IP65

Warranty : 5 years

UGR : <22

Contact Now

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

LED Tri Proof Light Production advantage:

Efficiency:
STANDARDLine:

PROLine: 120LPW

PRIMELine: 160LPW
Features:

* EPISTAR/SAN‘AN High Brightness SMD2835 LEDs,DUALRAYS Flicker-free Driver,DIP Switch Power Adjustment available;;

* IP65/IP66,IK08 Protection;

* Multiple Installations Optional (Suspension, Ceilign Mounted and Adjustable Surface Mount);;

* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee and Emergency,CCT Adjustable available;
* Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;
* Singe or Double wiring,Multiple Link with Double Wiring;
* 120°Beam Angle;
* Customized supported for special project

Why choosing DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.DUALRAYS D5 LED Triproof Light Spe.pdf

Model NO.	DR-TRL-EG5XPM
Input wattage	AC 100~277V 50/60Hz
System Efficency/LPW	160LPW
SDCM	<5
Operation Temp(℃)	-40℃~+50℃
IP Rating	IP 65
IK Rating	IK 10

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Protections Class	ClassⅠ
Sensor (option)	Daylight sensor/ microwave sensor
Color Index	>83Ra(>70Ra For Option)
IP/Rating	IP65
Power Factor	PF>0.95
LED Driver	Meanwell ELG Brand
UGR	<22
THD	<10%

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

DALI Intelligent Control Diagram

Packaging Information

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

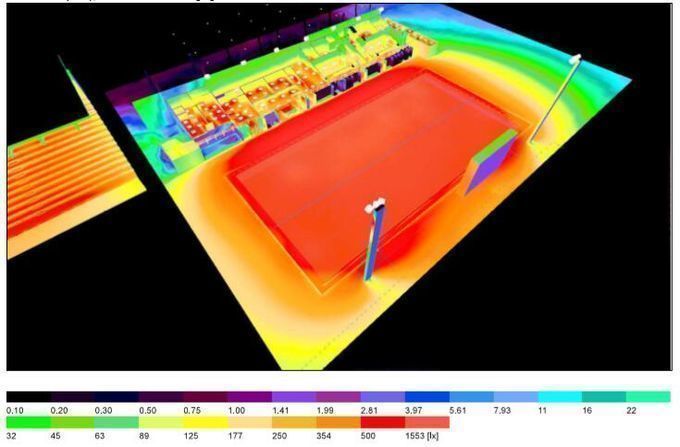

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse (DIALUX Simulation)

　　 Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse (Partnership)

Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　

40W 5000k LED Tri Proof Light Multiple Link with Double Wiring For Warehouse

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Tel: 0086-755-2306 6948

Fax: 0086-755-6164 1072

Zip Code: 518125
Add: 3rd Floor,Building A3 | Tianrui Industrial Park| #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103, P.R.China
